A sash window can look straightforward from the pavement: two sliding panels, a narrow frame and a familiar arrangement of glazing bars. Measuring sash windows correctly is less simple. In a period property, the visible opening may not reflect the condition, depth or dimensions of the timber box behind it. A few millimetres can affect sightlines, operation, weatherproofing and the fit of internal finishes.
For that reason, initial measurements are useful for planning a project, but they are not a substitute for a specialist site survey. This is particularly true in Victorian and Georgian homes, where windows may have settled, been repaired several times or vary subtly from one elevation to another.
Start by identifying what is being measured
A traditional sash window is made up of more than the two moving sashes. The box frame sits within the wall opening and houses the pulley wheels, cords, weights and pockets that allow the window to slide. The outer linings, staff beads, parting beads, sill and architraves all affect what can be seen and what can be measured.
When a replacement is being considered, the critical dimension is usually the opening available for the new box frame, rather than the glass size or the face of the existing sash. That distinction matters. Ordering a window from a measurement taken between the visible beads, for example, can produce a unit that is too small or wrongly proportioned.
Before recording anything, establish whether you are looking at a complete box-frame replacement, a restoration-led upgrade, or a repair to the existing joinery. Full replacement and repair work require different information. A specialist will assess the condition of the box, the sill, the surrounding masonry and the original profile before recommending the appropriate route.
Measuring sash windows: the essential dimensions
For a preliminary schedule, measure each window individually and label it by room and elevation. Do not assume that matching windows are identical. Hand-built period properties often contain small variations, even across one bay.
Width of the frame opening

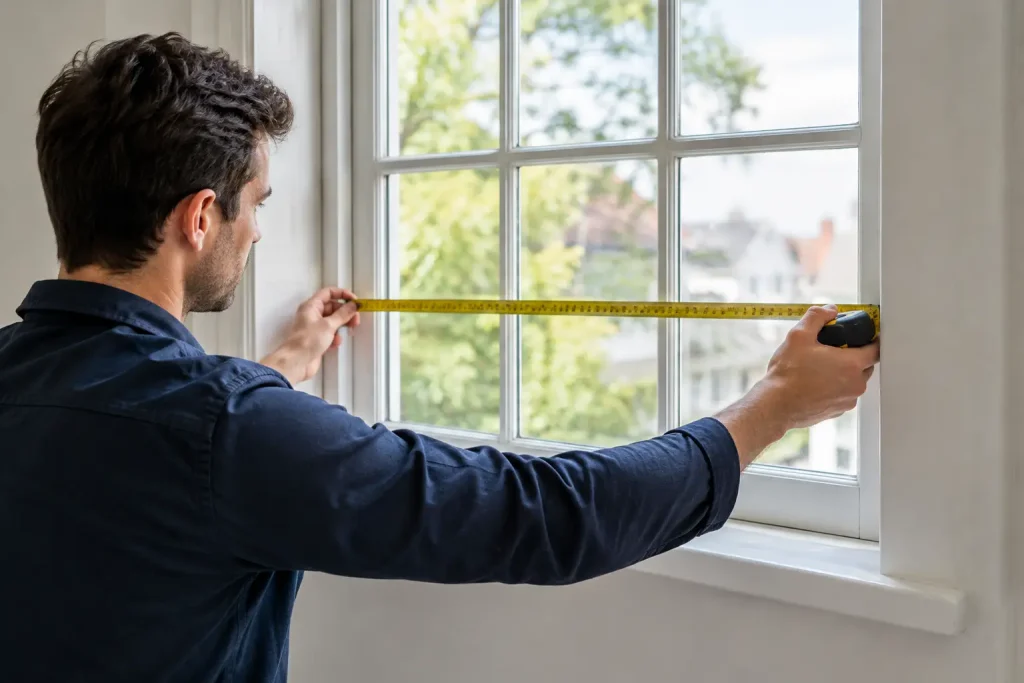

Measure the width at three points: near the top, through the middle and close to the bottom. Take the measurements from the inside edges of the box frame where possible, rather than from decorative trims. Record the smallest figure.
Different readings can indicate that the frame is out of square, bowed or affected by settlement. They may also show that a previous repair has altered one side of the opening. A difference of a few millimetres is not automatically a problem, but it needs to be allowed for during manufacture and installation.
Height of the frame opening
Measure the height on the left, centre and right, from the head of the opening down to the sill. Again, record the smallest measurement. Be clear about exactly where the tape begins and ends, particularly where paint build-up obscures the edge of the timber.
The sill deserves close attention. It is not merely a horizontal ledge. Its fall, depth, overhang and connection to the external masonry are all important to shedding water away from the building. A soft or distorted sill can make a height measurement misleading and may need replacement as part of the project.
Depth and wall reveal
Measure the depth of the existing box frame and the depth of the wall reveal. This helps establish how the replacement will sit within the opening and whether internal shutters, blinds, secondary glazing or deep reveals need to be accommodated.
On London period homes, this detail often affects the final appearance more than homeowners expect. A window that is the correct height and width can still look misplaced if its position in the reveal changes noticeably or if the replacement frame is too shallow for the original arrangement.
Sash and glazing proportions
If retaining the character of the existing windows is a priority, record the visible dimensions of both sashes, including the meeting rails, top rail, bottom rail and glazing bars. Take clear photographs straight on, as well as angled images of the mouldings and horn details.
These measurements are not normally used as the final manufacturing size, but they help preserve the proportions that give a façade its character. A replacement sash window should not simply fill a hole in the wall. It should relate properly to neighbouring windows, brickwork openings and the architectural period of the house.
Check for out-of-square openings and hidden defects
A tape measure alone cannot reveal every issue. Measure the diagonals from corner to corner where access allows. If the diagonal measurements differ, the opening is out of square. This is common in older buildings and does not necessarily require structural work, but the new window must be designed and fitted with suitable tolerances.
Look for signs that measurements may be compromised: cracked paint around joints, timber that feels soft under gentle pressure, a sill that slopes inward, gaps beside the box frame, or sashes that catch at one point in their travel. These can point to decay, movement or past alterations.
Also note whether the sashes open fully. Windows that have been painted shut or fitted with later security stops can conceal the parting beads and pulley arrangement. Forcing them open risks damage. A surveyor can inspect these areas safely and determine whether the original box can be retained or whether a complete replacement is more sensible.
Allow for fitting, not just the window itself
A replacement sash window needs an installation clearance around the frame. This allows the installer to position the window plumb and level, pack it securely and seal the perimeter appropriately. It is not a gap to guess at from a kitchen table.
Making a new frame to the exact largest dimension of an uneven opening creates fitting difficulties and can lead to pressure on the joinery. Making it unnecessarily small can leave wide, unattractive perimeter gaps and reduce the visual integrity of the installation. The correct allowance depends on the condition of the opening, the construction of the new frame and the proposed fixing method.
This is why a specialist survey differs from a basic quotation visit. The survey considers the dimensions alongside access, internal finishes, external stone or brick details, damp risks, scaffold requirements and how the old windows will be removed without damaging surrounding fabric.
Do not overlook bays, arches and paired windows
Bay windows require each section to be measured separately, including the angles between frames. A bay can appear symmetrical while having different side widths or a central window that has settled independently. The relationship between the frames is as important as their individual sizes, especially where the sashes must align across the elevation.
Arched heads, curved frames and shaped glazing are more complex still. Measure the straight sections, the springing point of the arch and the highest point, but avoid trying to create a final template yourself. Accurate production may require a site-made template or detailed digital survey.
For pairs and runs of windows, note the height of the meeting rail from a fixed reference point. Consistent rail lines make a substantial difference to a terrace or period façade. A technically fitted window can still look wrong if its horizontal divisions fail to align with those next to it.
What to provide for an initial quotation
Clear approximate dimensions can help establish scope and budget before a survey. Provide the width and height of each opening, photographs from inside and outside, the number of windows, and any known concerns such as draughts, noise, sticking sashes or decayed timber.
It is also helpful to mention whether the property is in a conservation area, has planning restrictions, or has an established appearance that must be closely matched. Formal listed-building requirements should be checked with the relevant local authority before work is commissioned. Consent can depend on the property, the proposed changes and the significance of the existing windows.
Avoid removing beads, cutting into painted joinery or dismantling a sash merely to obtain a figure. The information gained is rarely worth the risk. Replacement Sash Windows can turn a sensible initial schedule into a precise specification through a professional survey, with the proportions and practical details checked before manufacture.
The best measurement is not simply the one that produces a window that fits. It is the one that helps deliver a sash window that opens cleanly, keeps the weather out and still looks as though it belongs to the house.
